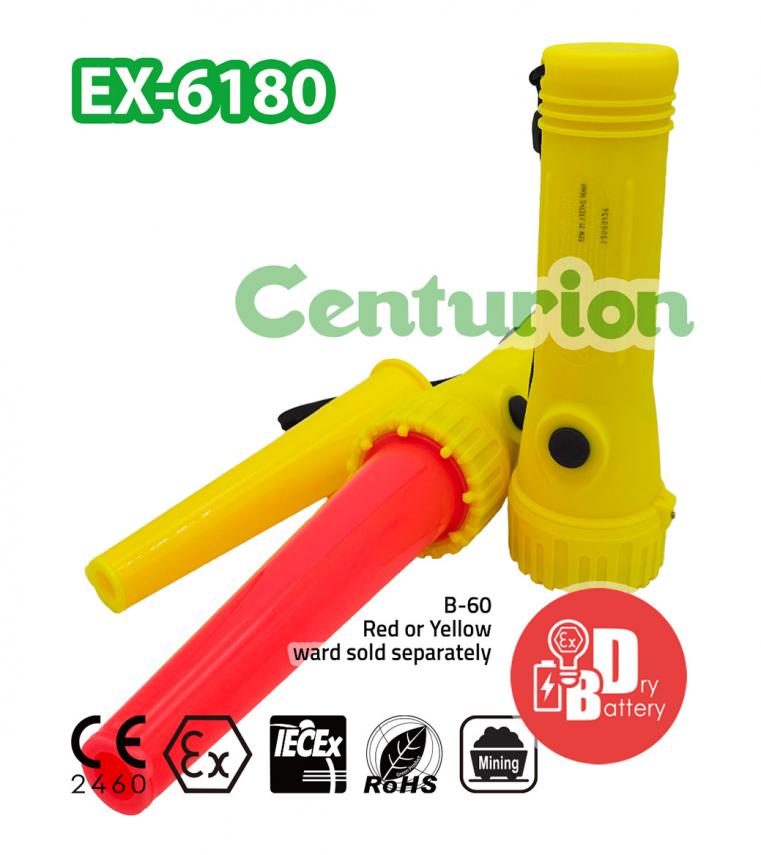

EX-6180 (IMPA 792205): ATEX Intrinsically Safe LED Flashlight

The EX-6180 Intrinsically Safe Flashlight is ATEX Directive certified for safe use in hazardous locations in zones 0, 1, 2, and zones 20, 21, and 22, and is approved safety standards for use in the Mining Industry.

This is a compact, lightweight, high-intensity flashlight. The body is equipped with a standard wrist strap for enhanced grip and comfort, and the user can easily switch it on even when wearing gloves. It is waterproof to IP67 and can be equipped with a high-visibility red or yellow wand. The flashlight is powered by 2D alkaline batteries.

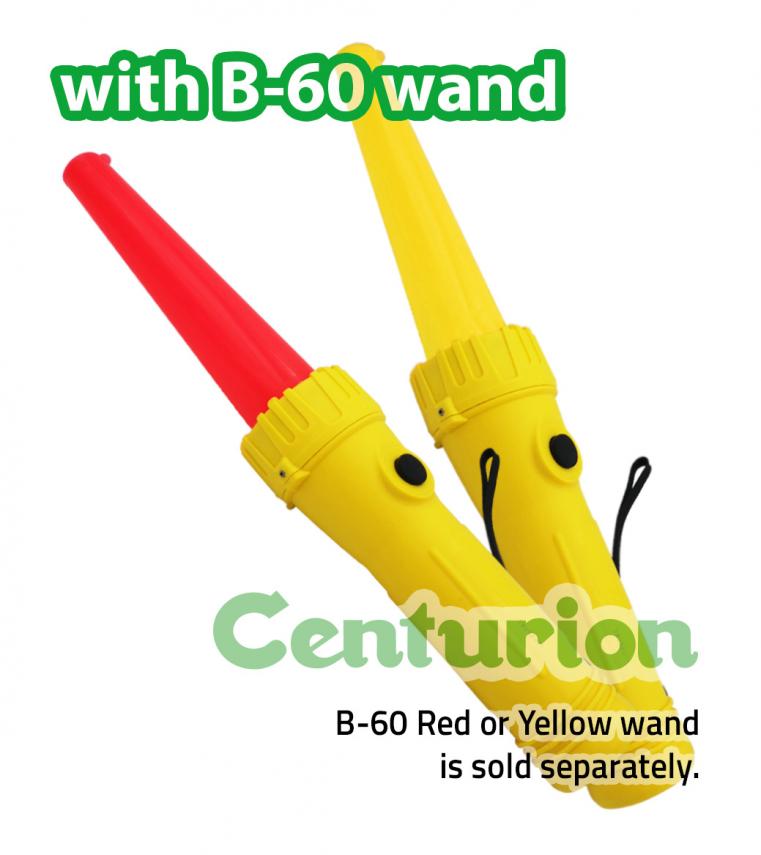

*Additional light-diffusing B-60 Red color wand or Yellow wand for EX-6180 is sold separately.

This product is also RoHS and CE certified.

Ex Mark:
I M1 Ex ia I Ma
II 1G Ex ia IIC T4 Ga
II 2D Ex ib IIIB T130°C Db
  • ATEX Certificate NO.: DNV 25 ATEX 79194X
  • IECEX Certificate No.: IECEx DNV 25.0160X
  • Type of Protection: 'ia' Intrinsically Safe
  • Areas of Classification (Gases): Zone 0, 1, and 2. Gas Groups: IIA, IIB, and IIC
  • Areas of Classification (Dusts): Zone 21, and 22. Dust Groups: IIIA & IIIB
  • Temperature Classification (Gases / Dust): T4 / 130°C
  • Enclosure: Impact-resistant thermoplastic, fire-retardant
  • Ambient Temperature: -20°C~+40°C
  • Beam Type: Spot
  • Beam Distance: 80 Meters
  • Output:
    • Source Lumens: 155 lm
    • Effective Lumens: 125 lm
    • Candela: 1650 cd
  • Light Duration: Up to 22.5 Hours
  • Light Source Type: High-power LED bulb
  • Power: 3V 1.7W
  • Power Source: 2 x LR20(D) Alkaline Batteries (Not Included)
  • Ingress Protection: IP67
  • Impact Resistance: 2.5 Meters
  • Product Net Weight: 150g (without batteries)
  • Dimension: Φ65*200mm
  • Packing: 60 pieces per carton, size: 62*39*44cm
